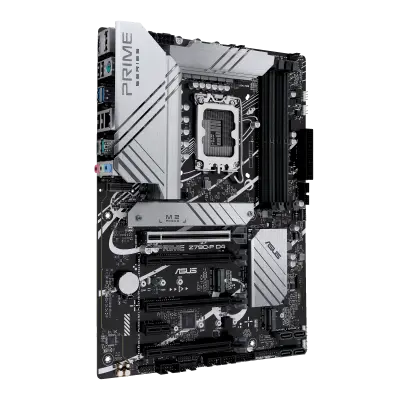

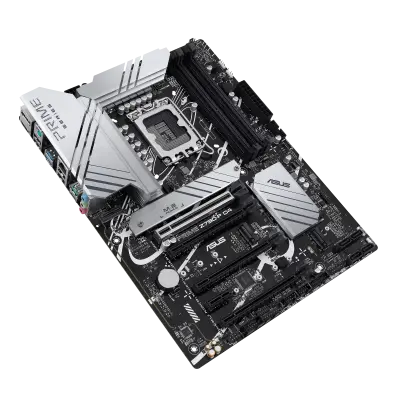

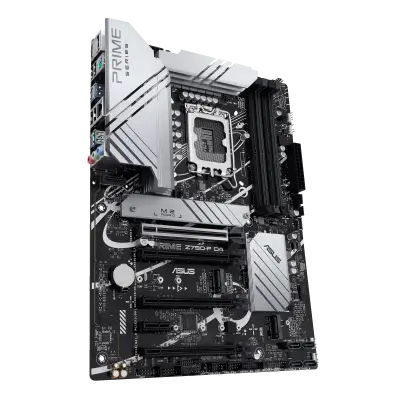

Asus PRIME Z790-P D4 (90MB1CV0-M0EAY0)
SKU: 12565
| Brand | Asus |
| Series | Prime |
| Model/PN | 90MB1CV0-M0EAY0 |
| Type | MotherBoard |
649.00 ₾
მარაგშია
თვეში 27 ₾ -დან
✓ მიწოდება მთელი ქვეყნის მასშტაბით
თვეში 27 ₾ -დან
General Information
- Brand: Asus
- Series: Prime
- Model/PN: 90MB1CV0-M0EAY0
- Type: MotherBoard

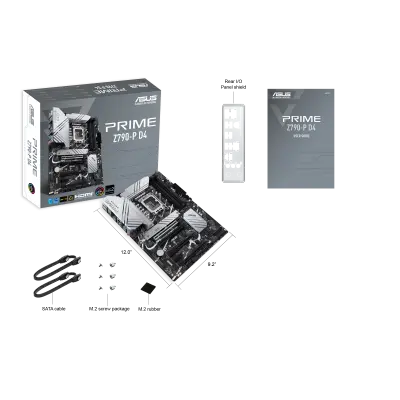

Included Accessories
- Cable Included: 2 x SATA 6Gb/s cables
Dimensions
- Dimensions (Height x Width x Depth): 30.5 x 23.4 cm cm
Motherboard Features
- Compatibility Processors: Intel Socket LGA1700 for 13th Gen Intel & 12th Gen Intel Core, Pentium Gold and Celeron
- Form Factor: ATX
- Socket: LGA1700
- Chipset: Z790
- Memory Slots Type: DIMM
- Memory MHz: 5333, 5133, 5066, 5000, 4800, 4700, 4600, 4500, 4400, 4266, 4133, 4000, 3866, 3733, 3600, 3466, 3400, 3333, 3200, 3000, 2933, 2800, 2666, 2400, 2133
- Memory Type: DDR4
- Number Of Memory Slots: 4
- Max RAM Memory: 128 GB
- BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Expansion Slots
- PCIe 5.0 x16: 1
- PCIe 4.0 x16: 3
- PCIe 3.0 x1 (x1 mode): 1
Storage
- M2 Slots: 3
- Raid Support: 0, 1, 5, 10
- SATA 6Gb/s Connectors: 4
- Intel Rapid Storage Technology support: Yes
LAN Controller
- LAN Controller: Realtek
- LAN Speed: 2.5Gbs
Motherboard Audio
- System: Realtek
- Number Of Audio Channels: 7.1
- 32-Bit/192kHz Playback: 24-Bit/192 kHz

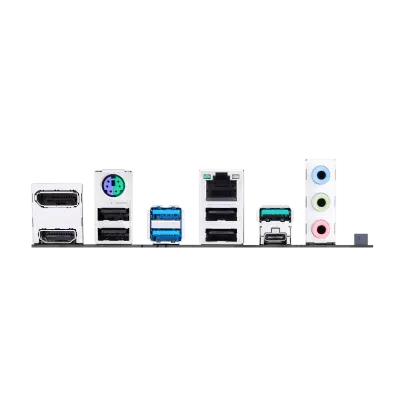

Back I/O Ports
- HDMI: 1
- USB 3.2: 3
- USB 2.0: 4
- DisplayPort: 1
- USB Type-C: 1
- LAN (RJ45): 1x 2.5Gb
- Audio Jacks: 3
- PS/2: 1 Keyboard/Mouse Combo
Internal I/O Ports
- M.2 Socket 3 for M Key: 3
- SATA 6Gb/s Connectors: 4
- 24-pin Power Connector: 1
- 4-pin Power Connector: 1
- 8-pin Power Connector: 1
- CPU Fan Connector: 1
- USB 3.2: 2
- CPU OPT Fan connector: 1
- USB 2.0: 2
- Chassis Fan Connector: 3
- USB Type-C: 1
- S/PDIF Out Header: 1
- Front Audio Connector: 1
- TPM Connector: 1
- COM: 1
- System Panel: 1 x 20-5pin
- Thunderbolt header: 1
- Clear CMOS Jumper: 1
- 3-Pin ARGB: 1
