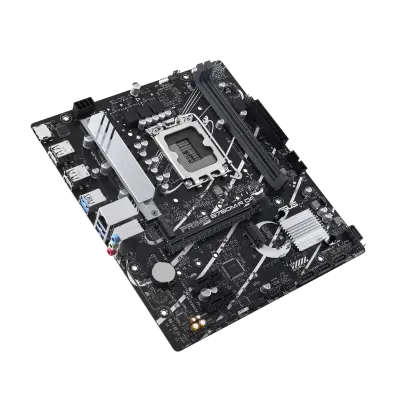

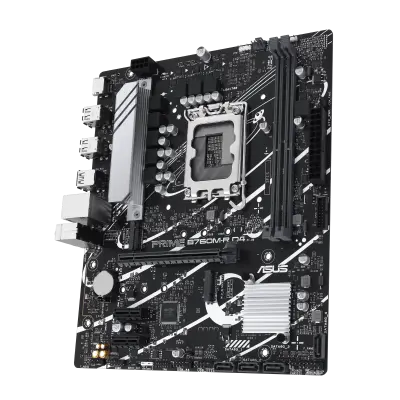

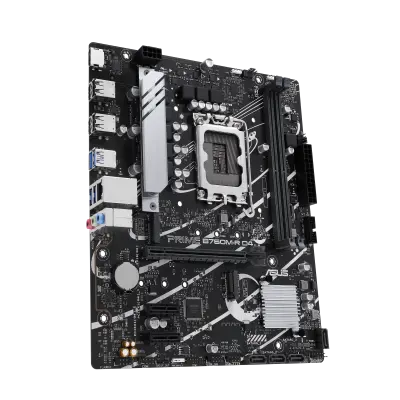

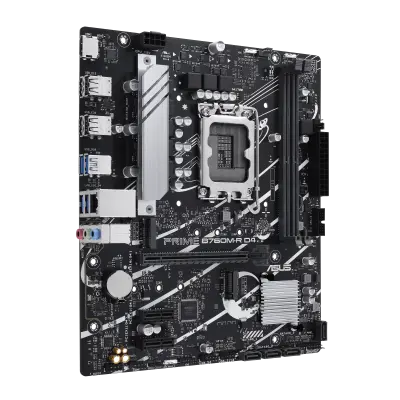

Asus Prime B760M-R D4
SKU: 13162
| Brand | Asus |
| Model/PN | PRIME B760M-R D4 |
| Type | MotherBoard |
369.00 ₾
მარაგშია
თვეში 15 ₾ -დან
✓ მიწოდება მთელი ქვეყნის მასშტაბით
თვეში 15 ₾ -დან
ბრენდი
- PCIe 4.0 x1: 2
General Information
- Brand: Asus
- Model/PN: PRIME B760M-R D4
- Type: MotherBoard
Dimensions
- Dimensions (Height x Width x Depth): 24.4 x 21.1 cm
Motherboard Features
- Compatibility Processors: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
- Form Factor: ATX
- Socket: LGA1700
- Chipset: B760
- Memory Slots Type: DIMM
- Memory MHz: 5333, 5066, 5000, 4800, 4600, 4400, 4266, 4000, 3733, 3600, 3466, 3400, 3333, 3200, 3000, 2933, 2800, 2666, 2400, 2133
- Memory Type: DDR4
- Number Of Memory Slots: 2
- Max RAM Memory: 64 GB
- BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Expansion Slots
- PCIe 4.0 x16: 1
Storage
- M2 Slots: 2
- Raid Support: 0, 1, 5, 10
- SATA 6Gb/s Connectors: 4
- Intel Rapid Storage Technology support: Yes
LAN Controller
- LAN Controller: Realtek
- LAN Speed: 2.5Gbs
Motherboard Audio
- System: Realtek
- Number Of Audio Channels: 7.1
- 32-Bit/192kHz Playback: 24-Bit/192 kHz

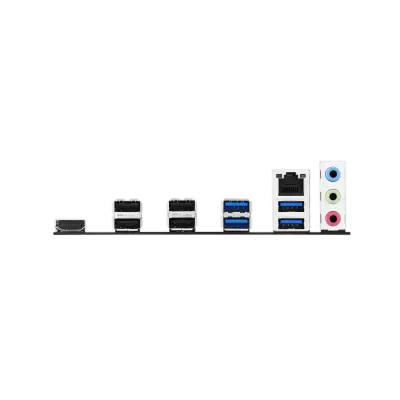

Back I/O Ports
- HDMI: 1
- USB 2.0: 4
- LAN (RJ45): 1x 2.5Gb
- Audio Jacks: 3
Internal I/O Ports
- M.2 Socket 3 for M Key: 2
- SATA 6Gb/s Connectors: 4
- 24-pin Power Connector: 1
- 8-pin Power Connector: 1
- CPU Fan Connector: 1
- USB 2.0: 2
- Chassis Fan Connector: 2
- System Panel: 1 x 10-1 pin
- Thunderbolt header: 1
- Clear CMOS Jumper: 1
